Pytes V5 Heated UL9540 Certified LiFeP04 48 volt 5.12KW Battery

Pytes V5 5.12kWh 100Ah 48V Lithium Iron Phosphate Battery With Heater

Pytes V5 5.12kWh 100Ah 48V Heated Lithium Iron Phosphate Battery – Reliable & Efficient Energy Storage Solution

Unlock the full potential of sustainable energy storage with the Pytes V5 5.12kWh 100Ah 48V Heated Lithium Iron Phosphate Battery. Engineered for excellence, this top-tier battery offers an optimal blend of durability, efficiency, and high-performance energy storage for a variety of applications.

Key Features:

• High Capacity & Efficiency: With a substantial 5.12kWh capacity and 100Ah rating, the Pytes V5 ensures consistent, reliable power. It’s perfect for solar energy systems, off-grid living, and backup power needs.
• Advanced Heating System: Unique to the V5 model, the integrated heating system maintains optimal performance even in cold temperatures, making it ideal for year-round use in any climate.
• Long Life Cycle: Lithium Iron Phosphate technology provides a significantly longer lifespan compared to traditional lead-acid batteries. Enjoy up to 6000 cycles at 80% depth of discharge, ensuring long-term reliability.
• Eco-Friendly & Safe: Embrace green energy with this environmentally friendly choice. It’s non-toxic, recyclable, and has a stable chemistry, reducing the risk of combustion or leakage.
• Compact & Versatile: The sleek, compact design of the Pytes V5 allows for easy installation in a variety of settings, from residential to commercial, without sacrificing performance or space.
• Smart Connectivity: Monitor and manage your energy usage with smart connectivity options, ensuring you stay informed and in control of your power needs.

Why Choose Pytes V5?

The Pytes V5 is more than just a battery it’s a commitment to quality and sustainability. Ideal for solar enthusiasts, eco-conscious homeowners, and tech-savvy individuals seeking a reliable and efficient energy storage solution. With its advanced features and robust construction, the Pytes V5 is set to revolutionize how you power your life.

In Stock Ready To Ship:

Experience the future of energy storage. Add the Pytes V5 5.12kWh 100Ah 48V Heated Lithium Iron Phosphate Battery to your system today and step into a world of efficient, reliable, and sustainable power.

Heated Lithium Iron Phosphate Battery



Pytes V5 5.12kWh 100Ah 48V Heated Lithium Iron Phosphate Battery	1
Pytes Battery-to-Inverter Communication Cable  3.5m	1
Pytes Bussbar set	1

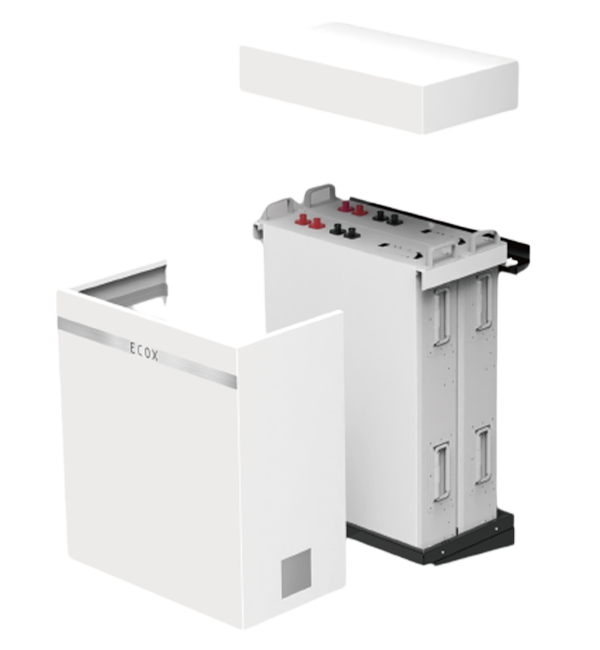

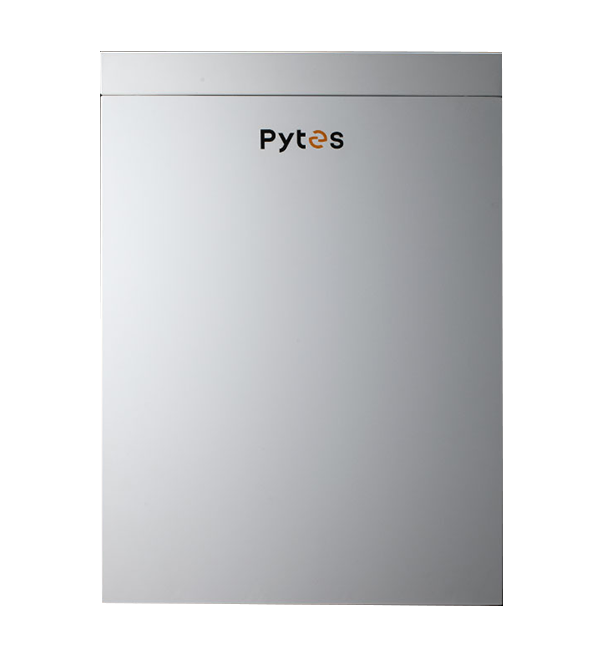

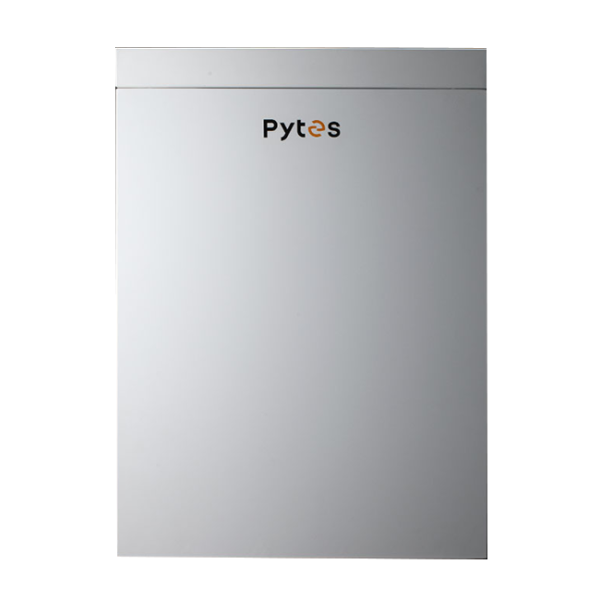

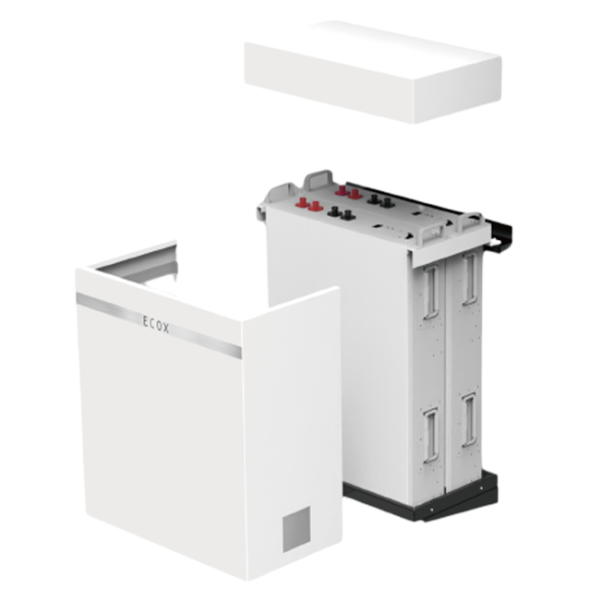

Cabinet Not Included	0

Pytes V5 Features:

• Remote Monitoring and Upgrading
• Wider Operation Temperature
• Greater Scalability
• Higher Discharge/Charge Rate
• Higher Energy Density
• 10 Year Warranty
• Heating System

Pytes V5 Specifications:

Battery Model	V5°

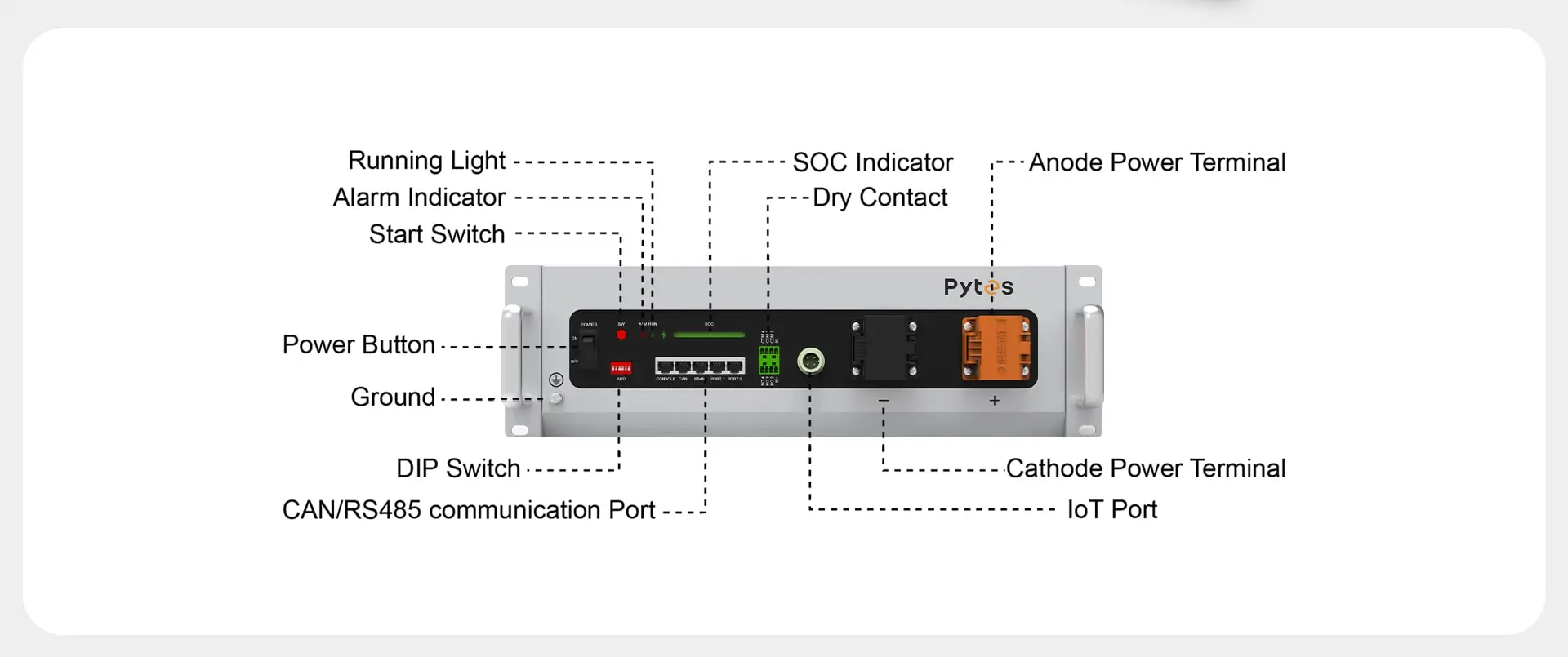

Power Terminal	Amphenol SurLok Plus   8.0mm
Chemistry	LFP
Nominal Voltage	51.2V
Voltage Range	47.5V~57.6V
Nominal Capacity	100Ah
Nominal Energy	5.12kWh
Unit Dimension	L 440 mm * W 530 mm * H 140 mm (3.2U) L 17.32 in * W 20.87 in * H 5.51 in (3.2U)
Unit Weight	44 KG / 97 lbs
Recommended Charge/ Discharge Current [1]	75A
Max Continuous Charge/ Discharge Current [2]	100A
Peak Charge/Discharge Current	101A~120A (3 min); 121A~180A (15 sec)
Round-Trip Efficiency	≥95%
Communication Protocol	RS485, CAN, WiFi (W/ Optional Device)
Cycle Life [3]	≥6000 cycles (~ 90%DOD)
Calendar Life	≥12 – 15 years
Operating Temperature	Charge: 0°C~45°C  (32℉~113℉) Discharge: -10°C~50°C  (14℉~131℉)
Certificates	UN38.3, CE, UL1973, UL9540A, UL9540, IEC62619, CEC, SGIP
Storage Temperature	Within 1month: -20°C~50°C  (-4℉~122℉) 1-3months: -10°C~40°C  (14℉~104℉) 3-12months: 20°C~25°C  (68℉~77℉)

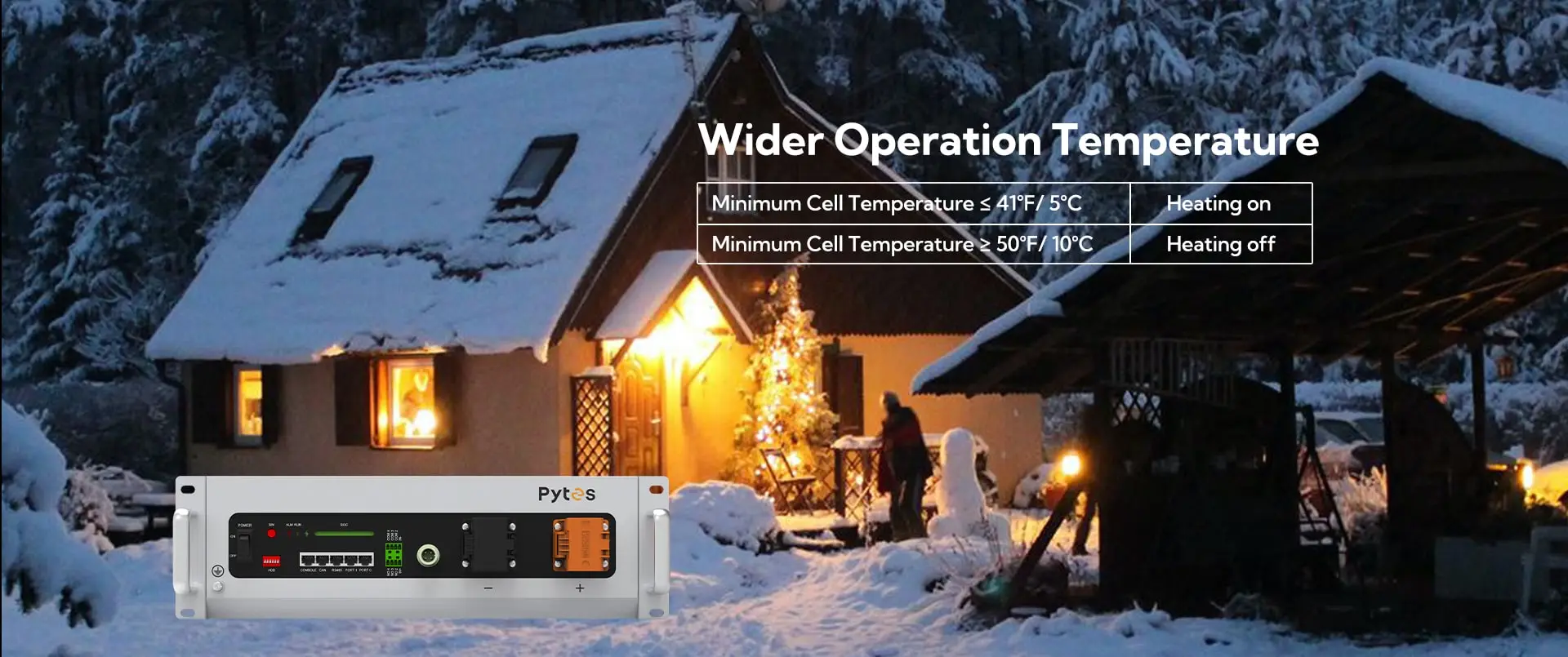

Heating System	Temperature Rise 10°C  (18℉)/Hour, Operation Temperature -18°C~10°C  (-0.4℉~50℉)

[1], [2]: The recommended and Max continuous charge and discharge current is for a battery cell temperature within 10°C~40°C  (50℉~104℉)to consider. It will result in a derating on current if out of the temperature range.
[3]: Test conditions 0.2C Charging/Discharging, ~25°C  (77℉), 80% DOD.
[4]: Integrated with some inverters, heating system may consume energy from battery when there’s voltage difference among system modules, between 0°C/32°F to 5°C/41°F. Follow 5.3.3 of this manual for multiple batteries power cable connection to minimize influence of the circular current, thus decrease battery energy loss.
