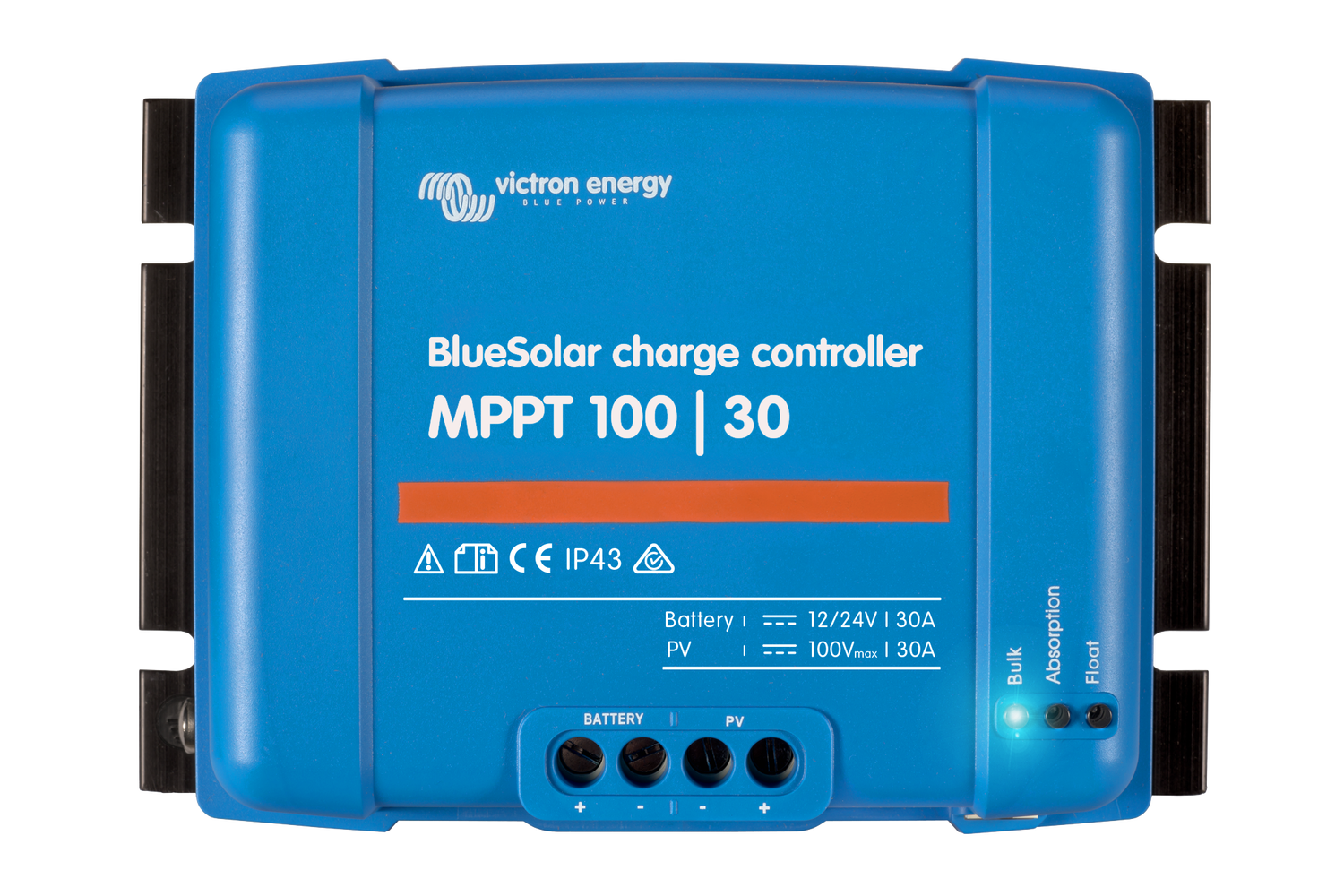

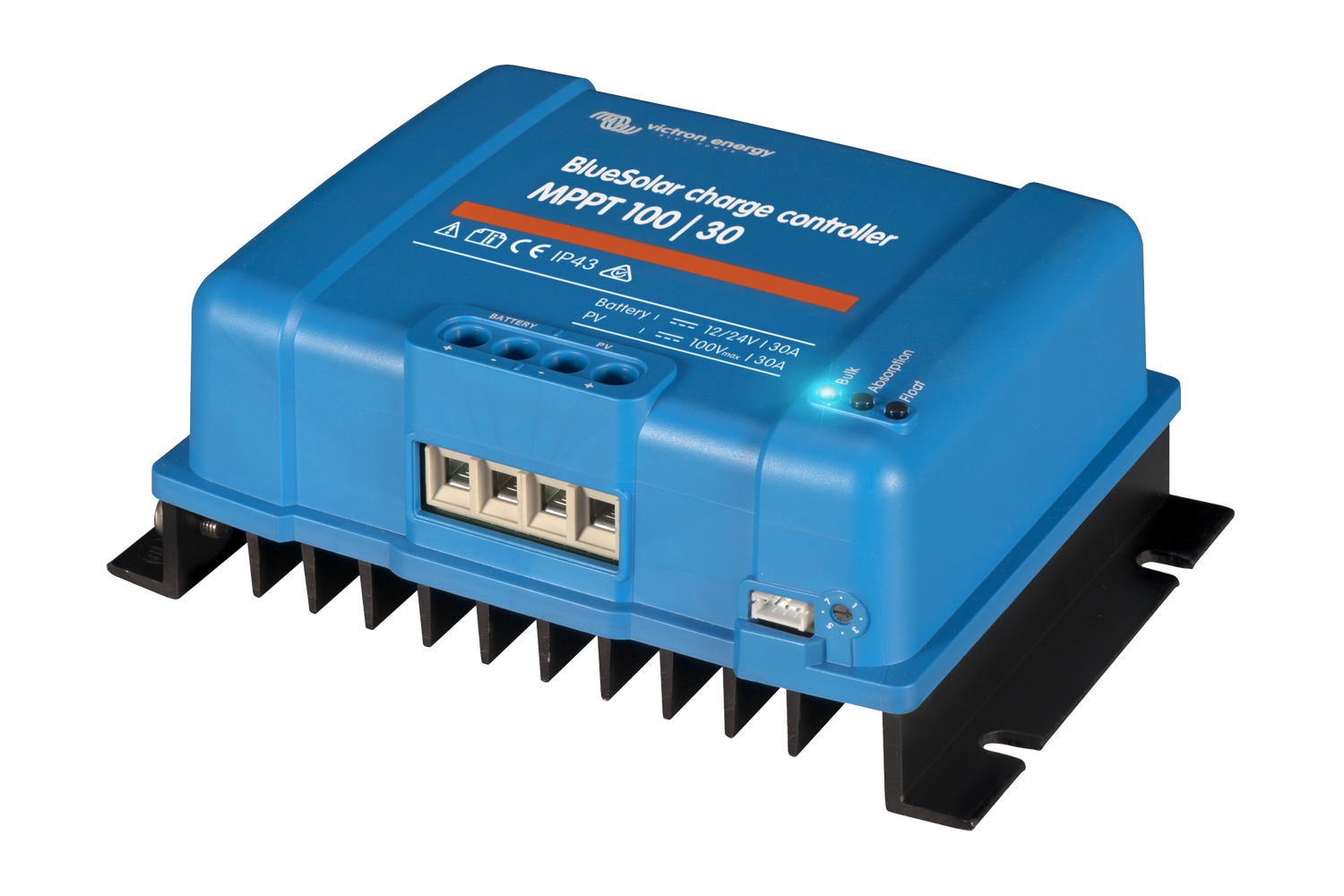

Victron Blue Solar MPPT 100/30 No Bluetooth
100 Volt 30 AMP Charge Controller – 12/24 Volt
This Controller Can Handle:
400 Watts @ 12 Volts
800 Watts @ 24 Volts
MPPT: Ultra Fast Maximum Power Point Tracking
By constantly monitoring the voltage and current output of your solar (PV) panels, the Victron MPPT 100/30 ensures that every drop of available power is rinsed out of your panels, and then harvested for storage. The advantage of this is most noticeable when the sky is partially clouded, and light intensity is constantly changing.
Ultrafast Maximum Power Point Tracking (MPPT)
Especially in case of a clouded sky, when light intensity is changing continuously, an ultra-fast MPPT controller
will improve energy harvest by up to 30% compared to PWM charge controllers and by up to 10% compared to
slower MPPT controllers.
Advanced Maximum Power Point Detection in case of partial shading conditions
If partial shading occurs, two or more maximum power points may be present on the power-voltage curve.
Conventional MPPTs tend to lock to a local MPP, which may not be the optimum MPP.
The innovative BlueSolar algorithm will always maximize energy harvest by locking to the optimum MPP.
Outstanding conversion efficiency
No cooling fan. Maximum efficiency exceeds 98%.
The full output current up to 40°C (104°F).
Flexible charge algorithm
Fully programmable charge algorithm (see the software page on our website),
and eight pre-programmed algorithms, selectable with a rotary switch
(see manual for details).
Extensive electronic protection
Over-temperature protection and power derating when temperature is high.
PV short circuit and PV reverse polarity protection.
PV reverse current protection.
Internal temperature sensor
Compensates absorption and float charge voltage
Similar Products: Victron Blue Solar MPPT 100/50 | Victron MPPT RS 450/100-TR
